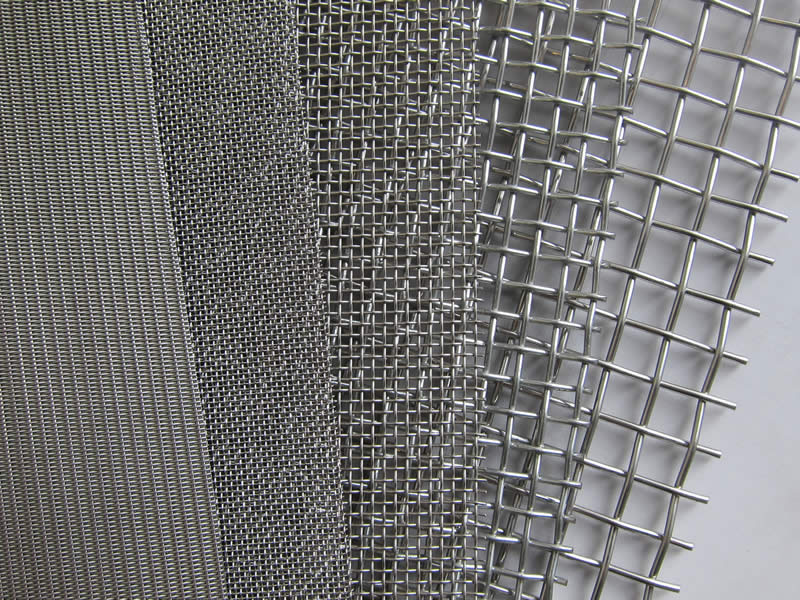

Stainless Steel Wire Mesh is woven using a high quality stainless steel wire.
Stainless steel metal is a versatile material offering corrosion resistance and strength and is available in a wide range of shapes. It is resistant to staining and is, overall, a low maintenance mesh. The attractive lustre of stainless steel make it an ideal material for many applications.
The common type of stainless steel is 304, 304L, 316, 316L, 310, 310S, 314, 321 etc.
Weaving type: Plain weave, Twill weave, Dutch Weave, Reverse Weave, Five-heddle weave, crimped weave.
Our stainless steel wire mesh offers extensive choices in shapes, finish and specialty alloys, available in cut-to-size lengths for just the amount you need, making it an economical choice.

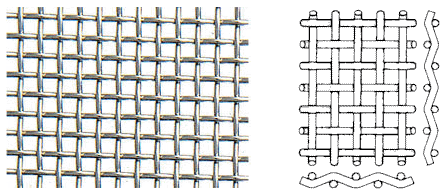

Plain Weaving
The Plain Wire Cloth Weaving is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloths are not crimped before weaving, and each warp wire passes over / under the wires running through the cloth at 90 degree angles.
Warp and weft wire diameters are generally the same. Used for the majority of commercial applications and for filtration where a high flow rate is required.

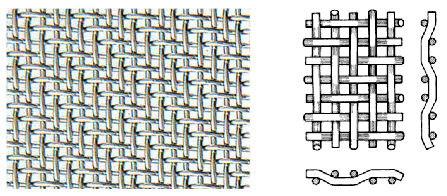

Twilled Weaving
Each weft wire passes alternately above and below every successive pair of warp wires and vice versa. This weave permits a heavier wire diameter to be used than would be possible in a plain weave with similar mesh count. This ability allows the application of this wire cloth for greater loads and finer filtration.

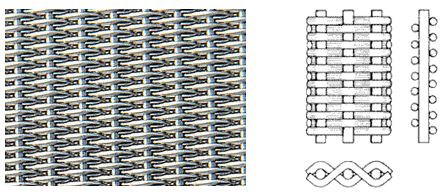

Plain Dutch Weaving
Woven as a plain weave but with the warp wires of greater diameter than the weft wires. The weft wires are woven tightly together producing a strong cloth whilst allowing a good flow rate.
Reverse Plain Dutch Weaving
This is the reverse of the Plain Hollander (Dutch) weave. The weft wires are of greater diameter than the warp wires, and consequently the warp mesh count is greater than the weft mesh count. This cloth is extremely strong, is easily cleaned and has a high flow rate.

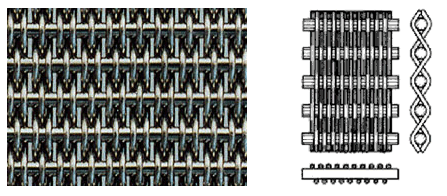

Twilled Dutch Weaving
Similar to Plain Dutch weaving, except that the weave is twilled, allowing a double layer of weft wires. This cloth is "light tight", has a very smooth surface, is strong, but has a restricted flow rate. There are no apertures in the true sense of the word as the filtrate follows a sinuous path through the depth of the wire cloth. Also referred to as Micromesh and is used for critical filtration applications often under high pressure.
Stainless Steel Weaving Wire Mesh Plain Weave | ||||
Mesh/inch | Diameter | Opening | ||
mm | inch | mm | inch | |
1 | 3 | 0.118 | 22.4 | 0.882 |
2 | 1.5 | 0.059 | 11.2 | 0.441 |
3 | 1.2 | 0.047 | 7.27 | 0.286 |
4 | 1 | 0.039 | 5.35 | 0.211 |
5 | 1 | 0.039 | 4.08 | 0.161 |
6 | 0.9 | 0.035 | 3.33 | 0.131 |
7 | 0.8 | 0.031 | 2.83 | 0.111 |
8 | 0.8 | 0.031 | 2.38 | 0.094 |
10 | 0.6 | 0.024 | 1.94 | 0.076 |
12 | 0.55 | 0.022 | 1.57 | 0.062 |
14 | 0.5 | 0.02 | 1.31 | 0.052 |
16 | 0.5 | 0.02 | 1.09 | 0.043 |
18 | 0.5 | 0.02 | 0.91 | 0.036 |
20 | 0.4 | 0.016 | 0.87 | 0.034 |
20 | 0.45 | 0.018 | 0.82 | 0.032 |
24 | 0.35 | 0.014 | 0.71 | 0.028 |
26 | 0.3 | 0.012 | 0.68 | 0.027 |
28 | 0.3 | 0.012 | 0.61 | 0.024 |
30 | 0.25 | 0.01 | 0.6 | 0.023 |
40 | 0.2 | 0.008 | 0.44 | 0.017 |
50 | 0.18 | 0.007 | 0.33 | 0.013 |
60 | 0.16 | 0.006 | 0.26 | 0.01 |
60 | 0.19 | 0.007 | 0.23 | 0.009 |
70 | 0.12 | 0.005 | 0.24 | 0.01 |
80 | 0.12 | 0.005 | 0.2 | 0.008 |
80 | 0.13 | 0.005 | 0.19 | 0.007 |
100 | 0.1 | 0.004 | 0.15 | 0.006 |
100 | 0.11 | 0.004 | 0.14 | 0.006 |
104 | 0.06 | 0.002 | 0.18 | 0.007 |
120 | 0.09 | 0.004 | 0.12 | 0.005 |
120 | 0.058 | 0.002 | 0.15 | 0.006 |
120 | 0.08 | 0.003 | 0.13 | 0.005 |
Stainless Steel Weaving Wire Mesh Plain Weave | ||||
Mesh/inch | Diameter | Opening | ||
mm | inch | mm | inch | |
140 | 0.07 | 0.003 | 0.11 | 0.004 |
145 | 0.045 | 0.002 | 0.13 | 0.005 |
150 | 0.06 | 0.002 | 0.11 | 0.004 |
150 | 0.05 | 0.002 | 0.12 | 0.005 |
160 | 0.05 | 0.002 | 0.11 | 0.004 |
160 | 0.04 | 0.002 | 0.12 | 0.005 |
160 | 0.035 | 0.001 | 0.12 | 0.005 |
165 | 0.05 | 0.002 | 0.1 | 0.004 |
180 | 0.05 | 0.002 | 0.09 | 0.004 |
180 | 0.04 | 0.002 | 0.1 | 0.004 |
200 | 0.053 | 0.002 | 0.07 | 0.003 |
200 | 0.05 | 0.002 | 0.08 | 0.003 |
200 | 0.04 | 0.002 | 0.09 | 0.003 |
220 | 0.05 | 0.002 | 0.07 | 0.003 |
230 | 0.035 | 0.001 | 0.08 | 0.003 |
230 | 0.03 | 0.001 | 0.08 | 0.003 |
250 | 0.04 | 0.002 | 0.06 | 0.002 |
250 | 0.035 | 0.001 | 0.07 | 0.003 |
250 | 0.03 | 0.001 | 0.07 | 0.003 |
270 | 0.035 | 0.001 | 0.06 | 0.002 |
270 | 0.03 | 0.001 | 0.06 | 0.003 |
280 | 0.035 | 0.001 | 0.06 | 0.002 |
300 | 0.03 | 0.001 | 0.05 | 0.002 |
325 | 0.025 | 0.001 | 0.05 | 0.002 |
325 | 0.028 | 0.001 | 0.05 | 0.002 |
325 | 0.03 | 0.001 | 0.05 | 0.002 |
350 | 0.022 | 0.001 | 0.05 | 0.002 |
370 | 0.022 | 0.001 | 0.05 | 0.002 |
400 | 0.022 | 0.001 | 0.04 | 0.002 |
420 | 0.022 | 0.001 | 0.04 | 0.002 |
450 | 0.02 | 0.001 | 0.04 | 0.001 |
Stainless Steel Weaving Wire Mesh Twill Weave | ||||
Mesh/inch | Diameter | Opening | ||
mm | inch | mm | inch | |
150 | 0.07 | 0.0028 | 0.0993 | 0.0039 |
165 | 0.058 | 0.0023 | 0.0959 | 0.0038 |
180 | 0.058 | 0.0023 | 0.0831 | 0.0033 |
200 | 0.058 | 0.0023 | 0.069 | 0.0027 |
225 | 0.05 | 0.002 | 0.0629 | 0.0025 |
235 | 0.045 | 0.0018 | 0.0631 | 0.0025 |
250 | 0.04 | 0.0016 | 0.0616 | 0.0024 |
270 | 0.04 | 0.0016 | 0.0541 | 0.0021 |
280 | 0.04 | 0.0016 | 0.0507 | 0.002 |
300 | 0.035 | 0.0014 | 0.0497 | 0.002 |
300 | 0.038 | 0.0015 | 0.0467 | 0.0018 |
300 | 0.04 | 0.0016 | 0.0447 | 0.0018 |
315 | 0.035 | 0.0014 | 0.0456 | 0.0018 |
325 | 0.035 | 0.0014 | 0.0432 | 0.0017 |
350 | 0.035 | 0.0014 | 0.0376 | 0.0015 |
350 | 0.03 | 0.0012 | 0.0426 | 0.0017 |
363 | 0.03 | 0.0012 | 0.04 | 0.0016 |
400 | 0.025 | 0.001 | 0.0385 | 0.0015 |
400 | 0.028 | 0.0011 | 0.0355 | 0.0014 |
400 | 0.03 | 0.0012 | 0.0335 | 0.0013 |
450 | 0.025 | 0.001 | 0.0314 | 0.0012 |
500 | 0.025 | 0.001 | 0.0258 | 0.001 |
510 | 0.025 | 0.001 | 0.0248 | 0.001 |
530 | 0.024 | 0.0009 | 0.0239 | 0.0009 |
635 | 0.02 | 0.0008 | 0.02 | 0.0008 |
795 | 0.015 | 0.00059 | 0.017 | 0.00067 |
