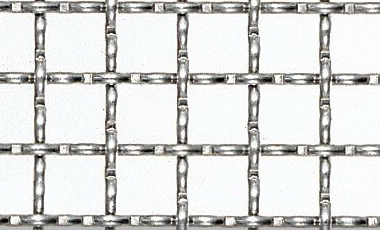

Material: stainless steel crimped wire mesh is one of the main stainless steel products, it is made of carbon iron wire, galvanized steel or stainless steel.
Stainless steel wire types: 302 304 304L 310 316 316L.
Stainless Steel Crimped Mesh Features: High temperature resisting, acid resisting, alkali resisting, corrosion resistanting, etc.
Processing Method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
Application: stainless steel crimped wire mesh could be used in many fields, such as in mine, coal factory, construction and other industries. Some of the stainless steel crimped wire mesh could also be used for roasting flour food and meat.
Wire Gauge SWG | Wire Diameter (mm) | Mesh/Inch | Aperture (mm) | Weight (kg/m2) |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
