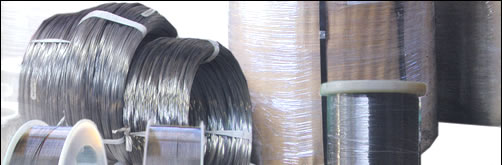

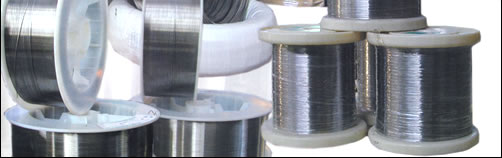

 不锈钢丝 |
|
|
材质：304、304L、316、316L。
规格：直径5mm-0.025mm
用途：再拉丝、编网、软管、钢丝绳、过滤器材、钢胶线、弹簧等。
类别：硬质线材、软质线材、不锈钢丝线轴、不锈钢丝线盘 |
|
| 不锈钢丝规格 |
线径(mm) |
许容差(mm) |
最大偏径差(mm) |
0.020-0.049 |
+0.002/-0.001 |
0.001 |
0.050-0.074 |
0.002 |
0.002 |
0.075-0.089 |
0.002 |
0.002 |
0.090-0.109 |
+0.003/-0.002 |
0.002 |
0.110-0.169 |
0.003 |
0.003 |
0.170-0.184 |
0.004 |
0.004 |
0.185-0.199 |
0.004 |
0.004 |
0.200-0.299 |
0.005 |
0.005 |
0.300-0.310 |
0.006 |
0.006 |
0.320-0.499 |
0.006 |
0.006 |
| 不锈钢丝材质 |
AISI 材质 |
化学成分(%) |
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
| 304 |
=<0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304H |
>0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
9.00~13.50 |
18.00~20.00 |
- |
| 316 |
=<0.045 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
| 316L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
| 430 |
=<0.12 |
=<0.75 |
=<1.00 |
=<0.040 |
=<0.030 |
=<0.60 |
16.00~18.00 |
- |
| 430A |
=<0.06 |
=<0.50 |
=<0.50 |
=<0.030 |
=<0.50 |
=<0.25 |
14.00~17.00 |
- |
|
|
|
